DT Series
Synchronous servo motors for the high-torque positioning of larger masses and high cycle rates.
Resilient
The high-pole servo motors of the DT series are designed for high torques and have increased intrinsic moments of inertia. This means they can also accelerate larger loads highly dynamically without a gearbox as a direct drive, thereby increasing the productivity of the machine.
Protected
The magnets in the rotor are inserted and fixed by means of a plastic overmoulding. This additionally protects the magnets from dust, gases and moisture – for permanently stable magnetic values.
Shortened
The high-torque motors of the DT series are also available in compact form: the DTK design is shorter, so it fits where space is limited. The DTK can drive linear axes, for example.

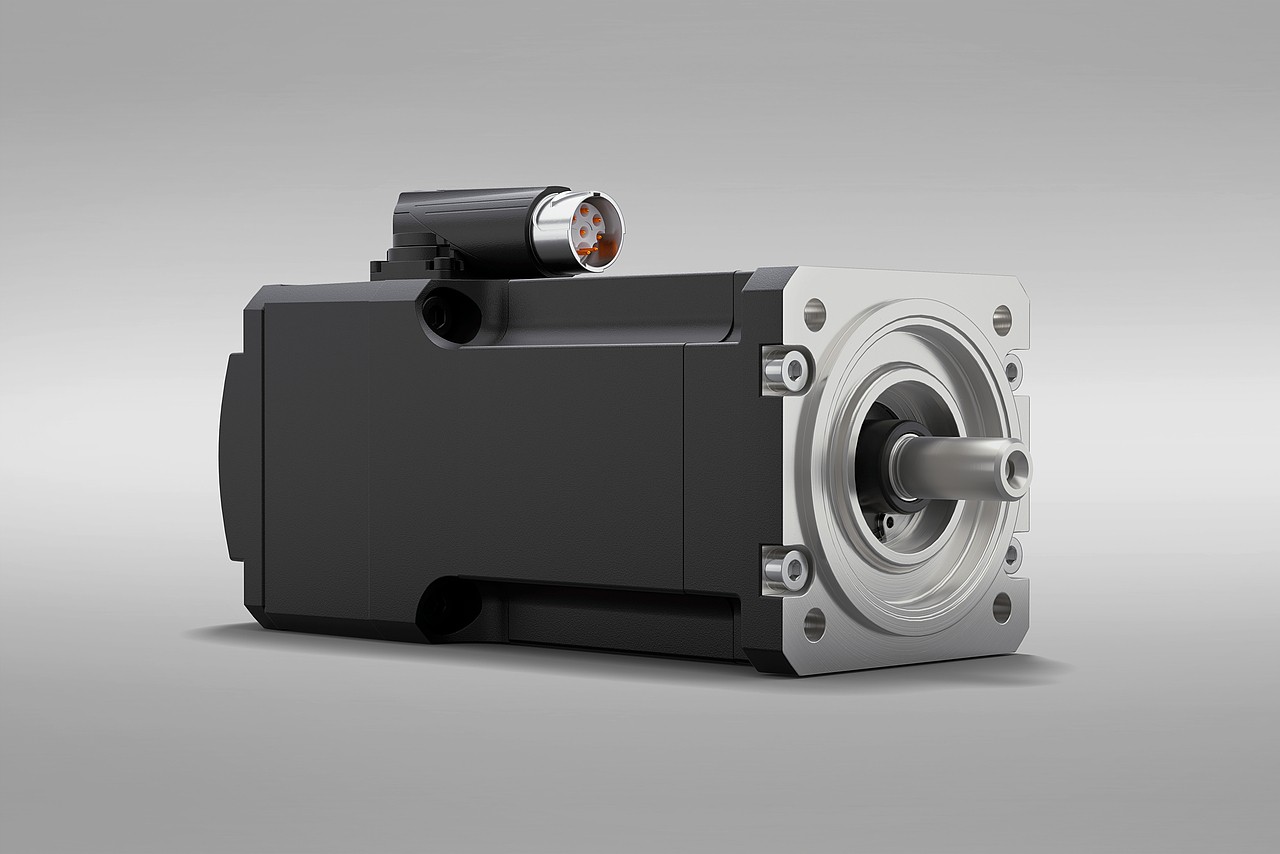

Single-cable solution
Single-cable solution
The DT series is also available as a single-cable version

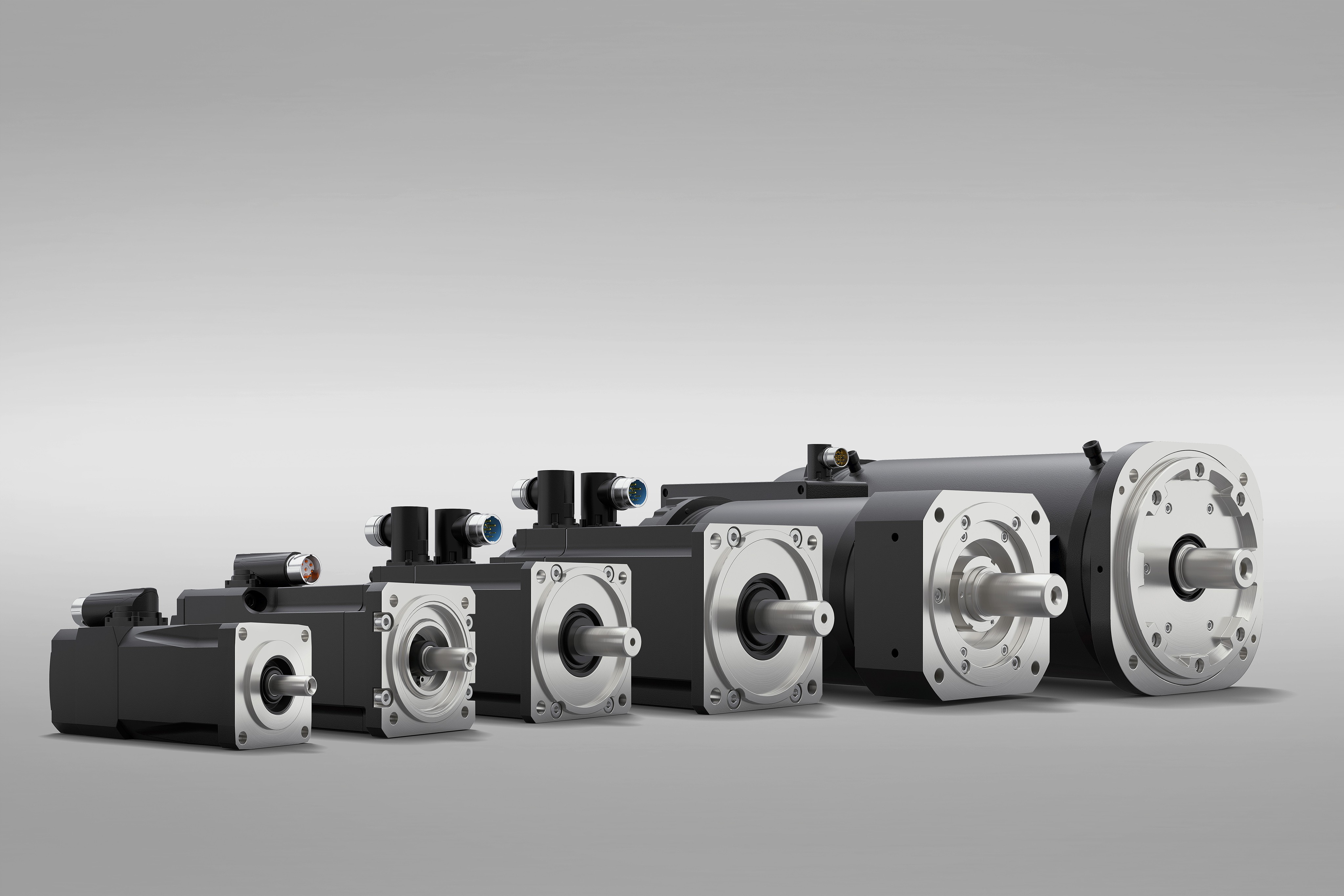

Six different sizes
Six different sizes
The DT series is available in flange sizes 55, 70, 100, 142, 190, 260 mm.
Product features
Flange size | 55, 70, 100, 142, 190, 260 mm |
Power range | 0.28 kW - 100 kW |
Rated speed | 100 - 9000 [min-1] |
Rated torque | 0.43 - 470 [Nm] |
Cooling type | Convection, forced-ventilated and liquid-cooled |
Protection class | IP54 (optional IP65) |
Brake | Available with and without brake |
Encoder | Resolver, EnDat 2.1 / 2.2 light, Hiperface, Hiperface DSL |
Single-cable solution | optional available |
Certification | Declaration of Conformity (EU) (UKCA), CSA |
