iC

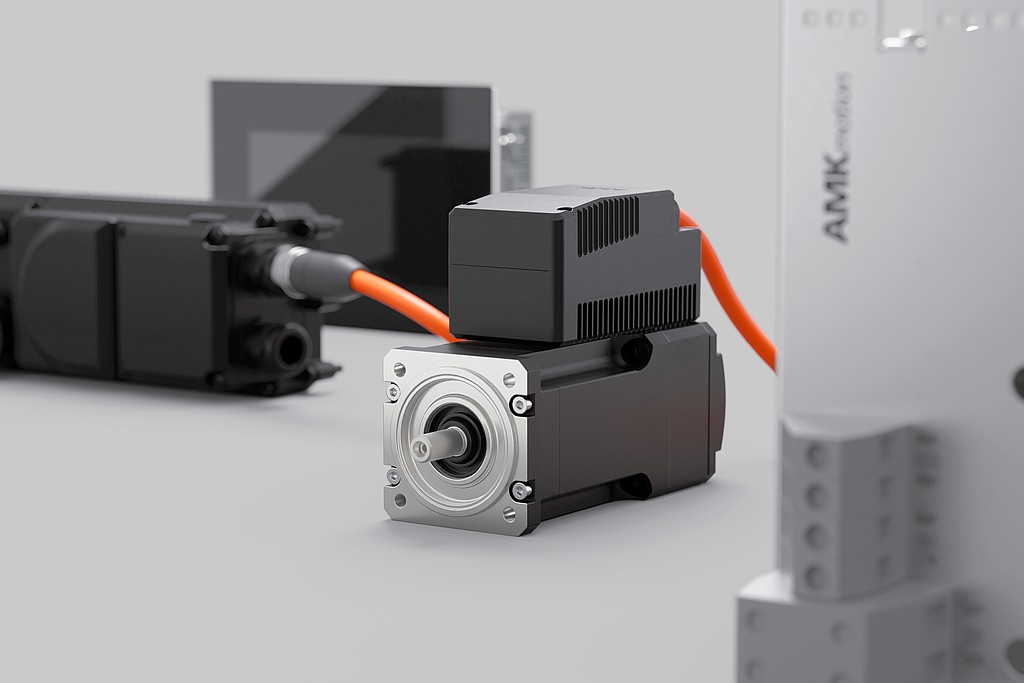

The decentralized servo converter

Product advice

Technical details

Downloads

Quick to install everywhere

The decentralised servo converter iC with IP65 protection is shock and vibration resistant, which makes it suitable for harsh environmental conditions – worldwide and without additional components. Thanks to its wide voltage range, the iC is compatible with different voltage systems.

Creates space for other things, enabling more compact machines

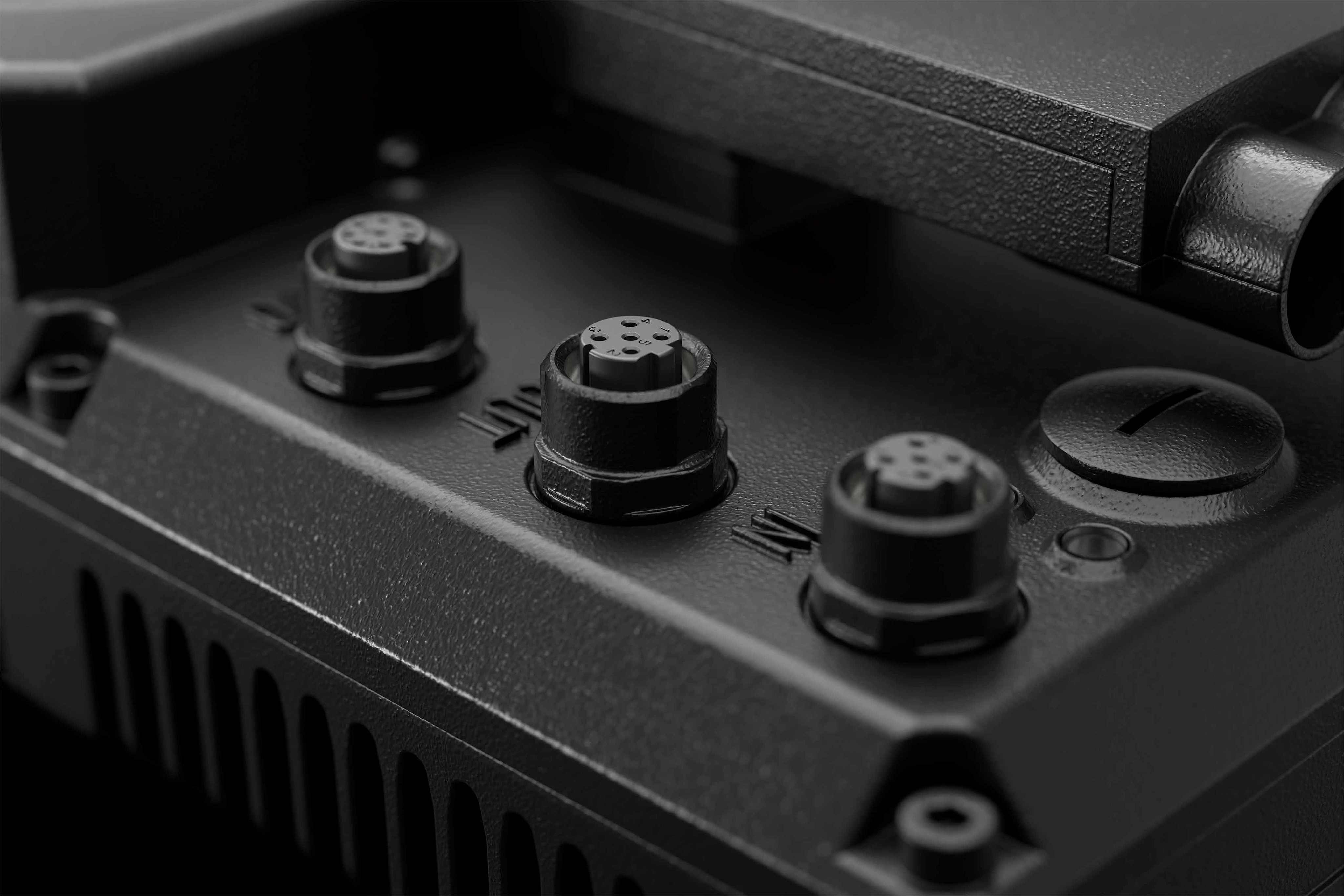

Instead of installing the iC in a control cabinet, the user installs it directly in the machine. This is achieved in a space-saving manner, as the servo converter is accommodated in a light and compact aluminium housing. Further simplifying installation, the AC feed-in only requires one line for the grid connection.

Voltage monitor included

An integrated charging resistor also serves as a brake chopper, meaning external components are no longer required. If the drive system is to work as a generator, the user can connect an additional external braking resistor. The alternative is an additional capacitor that stores the energy temporarily – for greater dynamic performance during the subsequent start-up.

Voltage for other units

The decentralised servo inverter can supply DC voltage to other servo converters via its mains supply. This daisy-chain concept simplifies cabling, saving both space and costs.

Safe performance

The “Functional Safety” option ensures optimum protection at the man-machine interface. Safety-relevant data is transmitted via the FSoE protocol (FailSafe over EtherCAT). This additional module enables safe movements in the machine module up to Performance Level (PL) d and Safety Integrity Level (SIL) 3.

Product features

Servo converter type	iC2	iC5	iC5-F
Cooling	Convection-cooled	Cold plate	Integrated air cooling
Mounting plate	No requirement	Cold plate	No requirement
Rated output power	2 kVA	5 kVA	5 kVA
Rated output current	3.3 A	8.2 A	8.2 A
Maximum outout current (duration 1 s)	6.6 A	16.5 A	16.5 A
Rated output voltage (sinusoidal)	3 x 350 V	3 x 350 V	3 x 350 V
Output frequency	0 - 599 Hz	0 - 599 Hz	0 - 599 Hz
Input voltage, AC bus	3 x 400 VAC	3 x 400 VAC	3 x 400 VAC
DC bus voltage	300 -720 VDC	300 - 720 VDC	300 - 720 VDC
Nominal current, DC bus terminals	25 A	25 A	25 A
Efficiency, motor electronics	98%	98%	98%
Supply voltage, brake	24 V ± 15%	24 V ± 15%	24 V ± 15%
Current consumption, holding brake, maximum	1 A	1 A	1 A
I/O s	3 x 2 multifunction inputs: each can be confi gured as 1 analog input or 2 binary inputs 3 x 3 multifunction inputs/outputs: Each can be confi gured as 3 binary inputs or 3 binary outputs	3 x 2 multifunction inputs: each can be confi gured as 1 analog input or 2 binary inputs 3 x 3 multifunction inputs/outputs: Each can be confi gured as 3 binary inputs or 3 binary outputs	3 x 2 multifunction inputs: each can be confi gured as 1 analog input or 2 binary inputs 3 x 3 multifunction inputs/outputs: Each can be confi gured as 3 binary inputs or 3 binary outputs
Protection class	IP65	IP65	IP54
Dimensions (LxWxH) without socket/plug height	270 x 100 x 43 mm	270 x 100 x 43 mm	270 x 100 x 89 mm
Weight	1.6 kg	1.6 kg	2.4 kg
