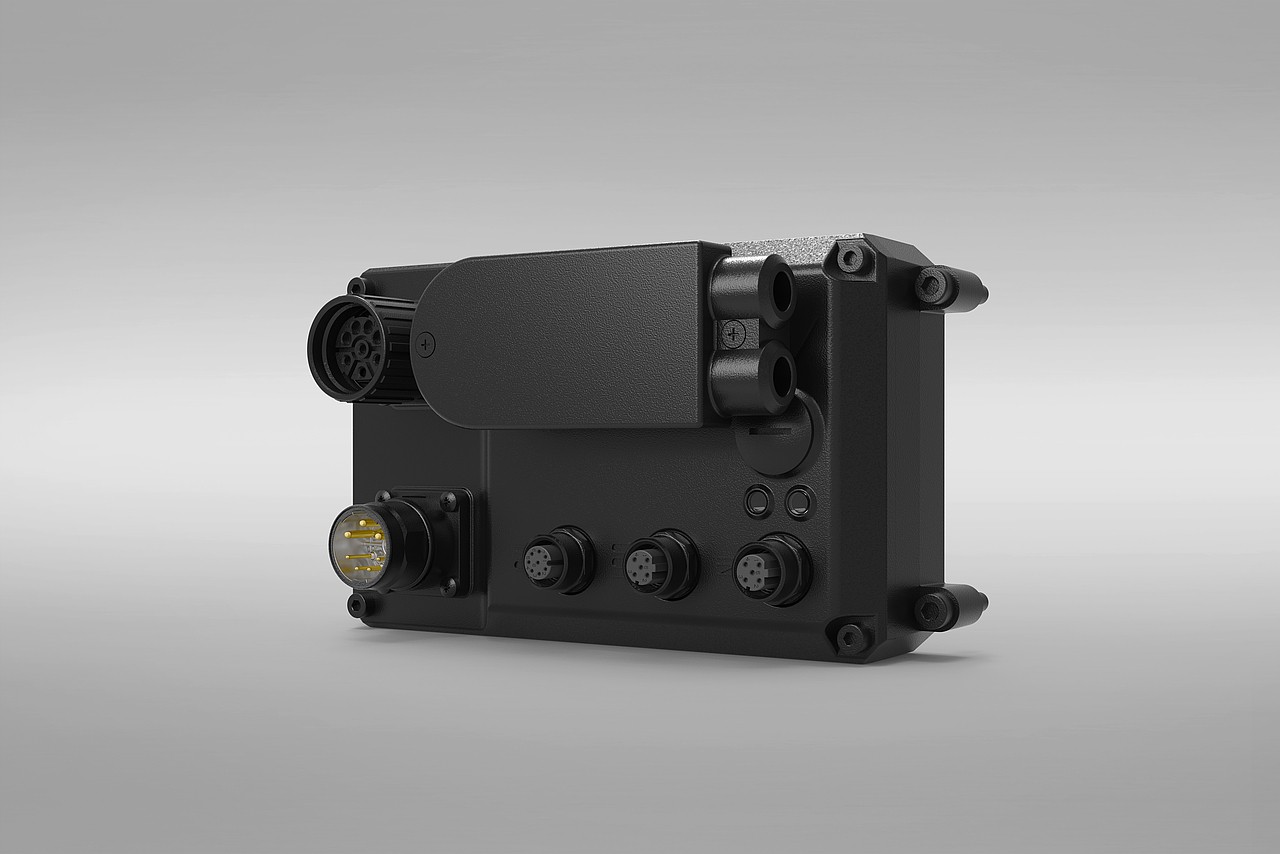

iX
The decentralized servo inverter
For mounting close to the motor
The iX servo inverter is shock and vibration resistant and sits securely in a lightweight aluminium housing. Decentralised installation is therefore fast, since the servo inverter does not require a control cabinet – even in harsh environments, thanks to its IP65 protection.

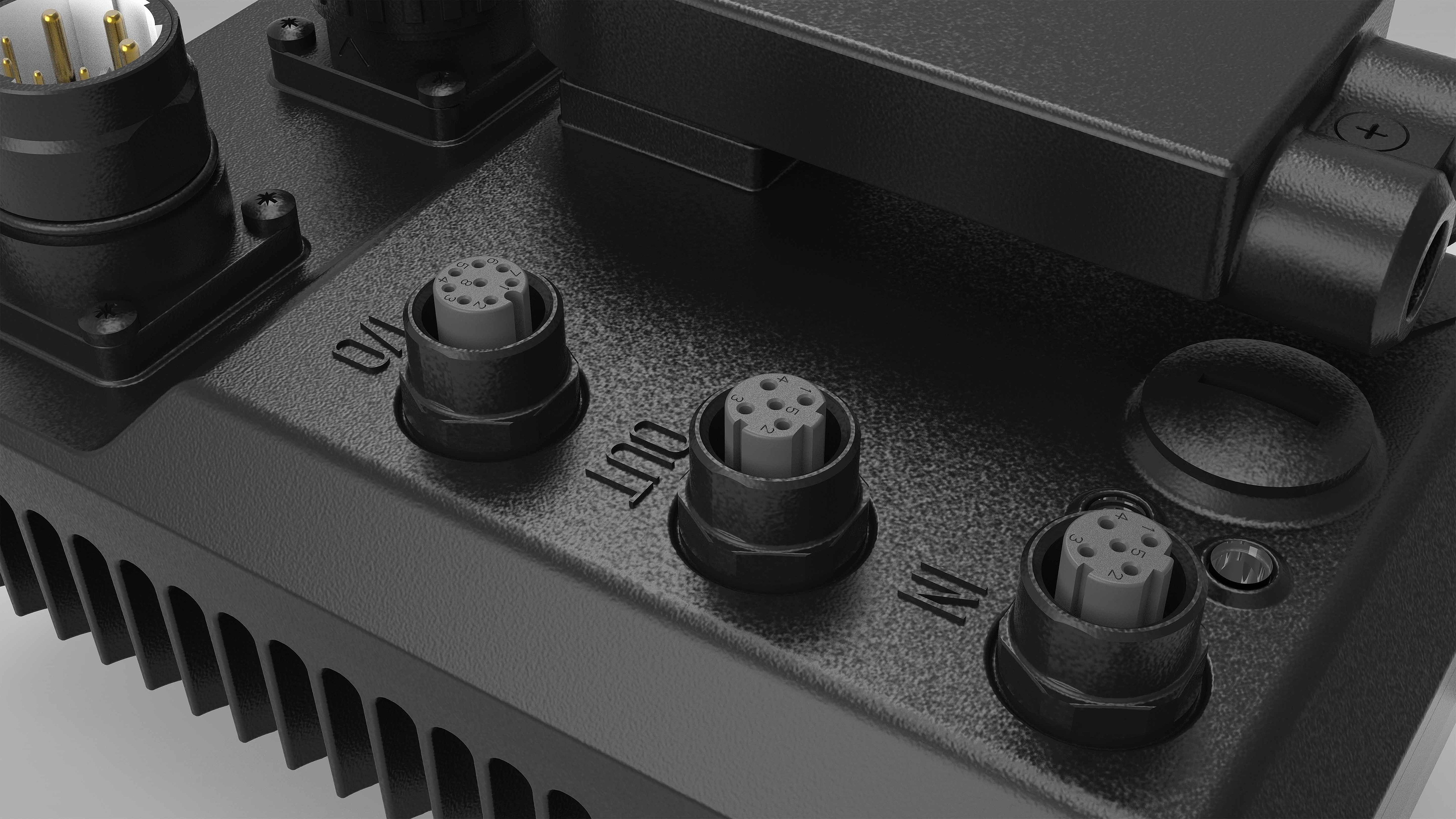

Straightforward series connection
The user can wire several servo inverters together according to the daisy-chain concept. Here, the DC bus, STO and 24V are forwarded from the iX to the decentralised drives in a single cable. Real-time communication takes place via a separate fieldbus cable.
Safety at a high level
The “Functional Safety” option increases the safety of movement in the machine module. It is based on the FSoE protocol (FailSafe over EtherCAT) and enables safe movements up to Performance Level (PL) d and Safety Integrity Level (SIL) 3.
Reduced complexity
Reduced complexity
The looping of power supply and communication lines reduces the cabling effort to a minimum, even in extensive machines. The iX decentralized servo inverter is ideally suited for modular machine and plant construction.
Product features
Servo inverter type | iX2 | iX5 | iX5-F |
|---|---|---|---|
Cooling | Convection-cooled | Cold plate | Integrated air cooling |
Mounting plate | No requirement | Cold plate | No requirement |
Rated output power | 2 kVA | 5 kVA | 5 kVA |
Rated output current | 3.3 A | 8.2 A | 8.2 A |
Maximum outout current (duration 1 s) | 6.6 A | 16.5 A | 16.5 A |
Rated output voltage (sinusoidal) | 3 x 350 V | 3 x 350 V | 3 x 350 V |
Output frequency | 0 - 599 Hz | 0 - 599 Hz | 0 - 599 Hz |
Input voltage, DC bus | 540 - 720 VDC | 540-720 VDC | 540-720 VDC |
Input voltage, shutdown threshold | 850 VDC | 850 VDC | 850 VDC |
Nominal current, DC bus plug connector | 25 A | 25 A | 25 A |
Supply voltage electronics | 24 V ± 15% | 24 V ± 15% | 24 V ± 15% |
Power consumption, electronics (with I/O max.) | 6 (18) W | 6 (18) W | 14 (26) W |
Efficiency, motor electronics | 98% | 98% | 98% |
Supply voltage, brake | 24 V ± 15% | 24 V ± 15% | 24 V ± 15% |
Current consumption, holding brake, maximum | 1 A | 1 A | 1 A |
Protection class | IP65 | IP65 | IP54 |
Dimensions (LxWxH) without socket/plug height | 162 x 100 x 43 mm | 162 x 100 x 43 mm | 162 x 100 x 89 mm |
Weight | 0.8 kg | 0.8 kg | 1.2 kg |
System structure
